Boat Plans - Multichine 45 SK

The MC 45 SK has a keel case placed at the central area of the boat, splitting the saloon in two halves. With 4.40 m maximum beam, it wasn’t difficult to install the social area of the saloon to one side and the galley counter to the other. To port side is placed the L shaped dinette, and at the other side there is a complete galley with icebox, freezer, four burners stove with oven, and a large sink for maximum comfort. The access to the fore compartments is given by a corridor that separates the galley counter from the keel case. Next to the collision bulkhead that makes the aft wall of the anchor rode locker is placed a private double berth cabin. Abaft the cabin there is a single berth to starboard and a large bathroom at portside with a separate shower box. At the after quarter two double berth cabins, one with private bathroom to starboard and one with a common access bathroom to port, complete the accommodations. Three separate cabins with the same number of heads, plus a bunk for a professional crew member, makes this yacht a choice for charter business, or for an owner´s usage with ample possibilities of accommodating large crews with comfort.

Due to its deep bilges, the engine can be located all below the main saloon floor level, resulting in no encumbrance of the interior circulation. The same deep bilges allow for customization of capacities for water and fuel tanks.

Owing to the size of this boat, we are open to study alternative interior arrangements with each costumer.

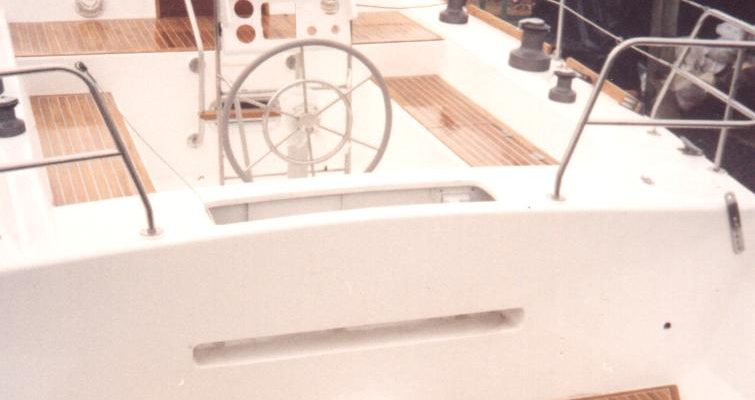

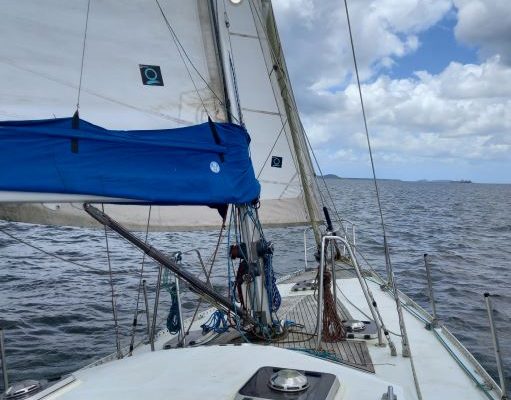

A flush foredeck, small cabin trunk and large cockpit make for a simple and functional deck arrangement. A large cockpit locker and a good-sized stern platform are provided for convenience and easy access to the water. The cockpit seat behind the wheel can be made removable or pivoting to facilitate access to the cockpit.

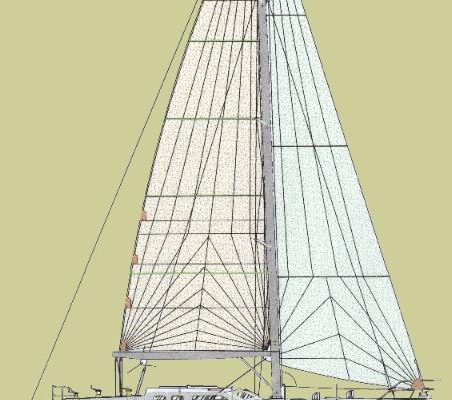

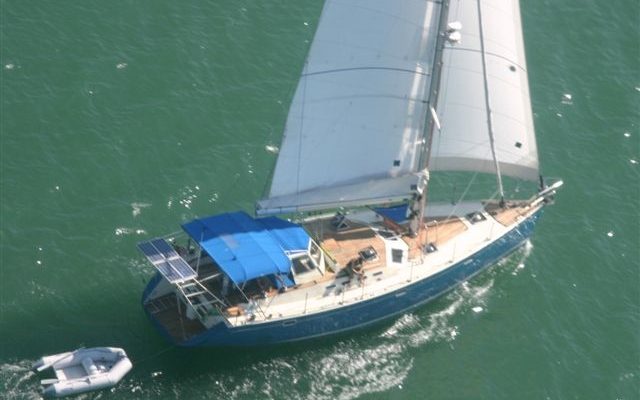

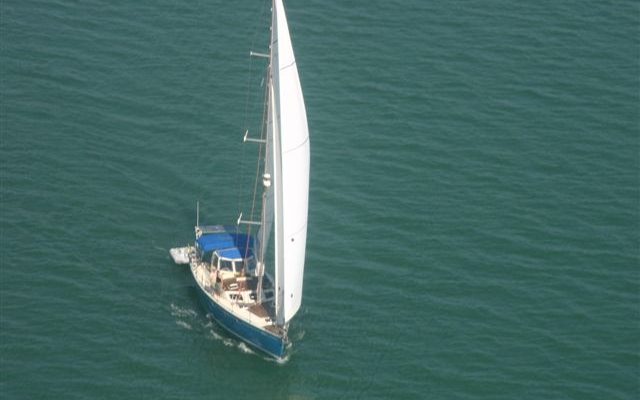

The Multichine 45 SK is cutter rigged with spreaders swept aft, a feature that allows dispensing running backstays, a nuisance in cruising sailboats. This rig is simple and efficient, in our opinion the best choice for offshore sailing. The two foresails fitted with roller-furling gear allow for infinity of adjustments, keeping the boat balanced in practically any condition. The mainsail has its foot with moderate dimensions, representing less load on the steering system, especially on the autopilot, besides improving sail handling, mainly when jibing in heavy weather. With average sized sail area, the Multichine 45 SK is capable of performing good daily runs with minimum stress for the crew.

The swing keel solution employed in the Multichine 45SK is no doubt one of the hot features of the project. The working mechanism we adopted in the design is being successfully employed in many other boats of our design, functioning flawlessly even in the worst conditions. We specified a system to lift the keel in which two spectra ropes are pulled by a hydraulic piston. The great advantage of this system is to avoid damage in case of accidental collision, once the keel is free to swing up, and when it falls back, the impact is dissipated by a shock absorber.

The Multichine 45 SK has two options of rudders: twin rudders protected by skegs, which keep the draft low and allow for efficient control due to the increased rudder area and

a fixed rudder placed behind a skeg, which protects the propeller blades when the boat is laying on a beach slope.

We opted for a non-retractable shallow (double or single) rudder of correct size, keeping the keel as the only retractable appendage, making the boat less dependent on complex systems.

With the same sail area as the one specified for the fin-keel version, the Multichine 45 SK has a slightly heavier displacement than the other design, but on the other hand she is more stable than the Multichine 45 when its swing keel is dropped.

Auxiliar propulsion recommended is a 50 to 80 HP diesel engine.

With 1100 l of water and 700 l of diesel fuel, capacities are good for a family ocean voyaging yacht.
